High Speed Fuses

Professional High Speed Fuse Manufacturer

Chifeng Electric is a professional High Speed Fuse manufacturer, supplier, and OEM partner, specializing in the development and production of high-performance semiconductor protection fuses for industrial power electronics and electrical protection systems.

Why Choose Chifeng Electric?

Selecting the right high-speed fuse manufacturer is essential for protecting valuable electrical equipment and ensuring system reliability.

Our Advantages:

Professional semiconductor fuse manufacturer

Years of industry experience

Comprehensive product portfolio

Fast-acting overcurrent protection

Low I²t energy let-through

High breaking capacity

Technical Specifications

Item	Specification
Product Type	High Speed Fuse
Rated Voltage	AC 250V–1500V / DC up to 1500V (Series Dependent)
Rated Current	1A–1600A
Breaking Capacity	Up to 200kA
Operating Class	aR / gR / gS
Time Characteristic	Ultra Fast Acting
Fuse Body	Ceramic
Fuse Element	High-Purity Silver
Filling Material	High-Purity Quartz Sand
Contact Material	Copper / Silver Plated Copper
Mounting Type	Bolt-on / Blade / Cylindrical / Square Body
Compliance	IEC / UL (Series Dependent)
Application	Semiconductor Protection

Typical Electrical Performance

Parameter	Typical Value
Rated Current	1A–1600A
Rated Voltage	Up to 1500V
Interrupting Rating	Up to 200kA
Operating Class	aR / gR
Operating Frequency	50/60Hz
Low I²t Characteristics	Excellent
Current Limitation	Excellent
Arc Voltage	Low
Thermal Stability	Excellent
Mechanical Durability	High

High Speed Semiconductor Protection Square Type Fuse

Key Features & Advantages

Chifeng Electric High Speed Fuses provide dependable semiconductor protection in demanding industrial environments — Quality materials, precision engineering, stable performance, long service life.

Ultra-Fast Fault Interruption:Interrupts short-circuit currents within milliseconds — Protects sensitive semiconductors before thermal damage occurs.

Low I²t Energy Let-Through:Optimized element design — Minimizes energy released during faults — reduces stress on IGBTs, SCRs, diodes, power electronics.

High Breaking Capacity:Safely interrupts extremely high prospective fault currents — Reliable operation in industrial power systems.

Excellent Current Limitation:Rapid limiting reduces peak fault current — Minimizes equipment damage, improves system safety.

High Thermal Stability:Premium ceramic bodies + high-purity quartz sand — Reliable under elevated temperatures and thermal cycling.

Low Power Loss:Optimized internal construction — Reduced resistance, improved energy efficiency, less heat generation.

How High Speed Fuses Work

High Speed Fuses are designed to protect sensitive semiconductors by interrupting fault currents before they cause irreversible thermal or electrical damage — Optimized for ultra-fast interruption and low energy let-through.

Step 1 – Normal Operation:Current flows through the silver element with minimal resistance and heat — Stable while carrying rated current.

Step 2 – Fault Detection:Short circuit or severe overcurrent — Current rises rapidly beyond safe limits. Semiconductors have very low thermal tolerance — Protection must occur within milliseconds.

Step 3 – Ultra-Fast Operation:Precision silver element melts almost instantly — Quartz sand inside ceramic body absorbs arc energy and extinguishes the arc. Limits peak current, arc energy, thermal damage, mechanical stress.

Step 4 – Circuit Interruption:Faulty circuit safely disconnected before excessive energy reaches semiconductors — Protects IGBTs, SCRs, thyristors, MOSFETs, diodes, rectifiers, power modules.

Step 5 – Equipment Protection:Limits fault energy (I²t) — Reduces downtime, minimizes repair costs, improves overall system reliability.

How to Select the Right High Speed Fuse

Selecting the correct High Speed Fuse is critical for reliable semiconductor protection and equipment performance — wrong selection may cause nuisance operation, insufficient protection, or costly damage.

01/

Determine Protected Semiconductor
IGBT, SCR, thyristor, GTO, MOSFET, diode, rectifier bridge, inverter module, power semiconductor — Different technologies have different overload and I²t withstand characteristics.

02/

Verify Rated Voltage
Must be ≥ maximum system voltage — AC 250V to 1500V, DC 750V to 1500V — ensures safe interruption under faults.

03/

Select Appropriate Rated Current
Based on continuous current, ambient temperature, loading, short-term overload, cooling — oversized or undersized reduces reliability or compromises protection.

04/

Evaluate Interrupting Capacity
Must safely interrupt maximum prospective fault current — for high-power industrial: 100kA, 150kA, 200kA — protects equipment and personnel.

05/

Consider I²t Characteristics
Lower I²t = faster interruption, lower thermal stress, better semiconductor protection, reduced damage — match with semiconductor withstand ratings.

06/

Choose Correct Operating Class
AR: Short-circuit protection only — must pair with overload protection
GR: Overload and short-circuit protection for semiconductor equipment
GS: Combined protection for semiconductors and associated equipment

07/

Confirm Mounting Requirements

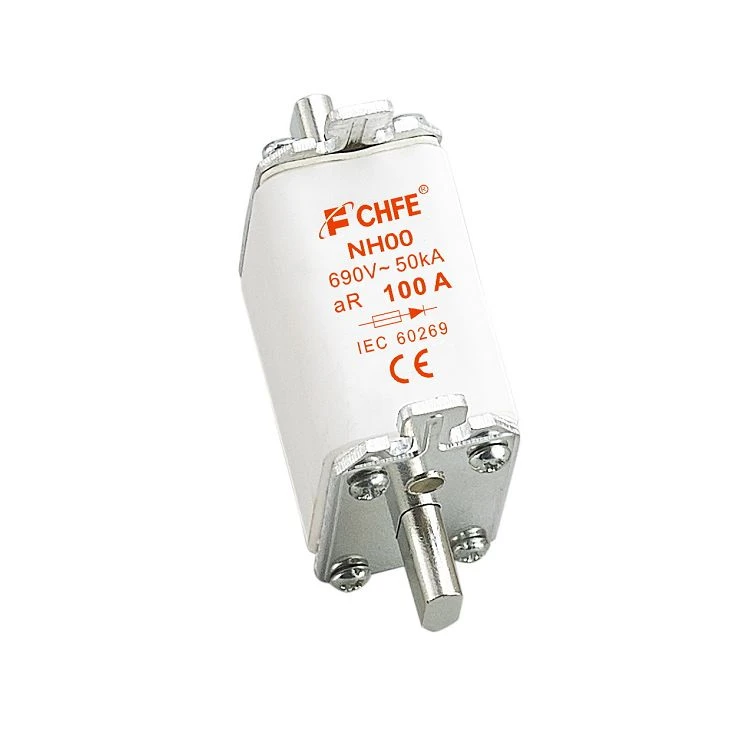

Square body, cylindrical, bolt-on, blade contact, NH style — correct installation ensures reliable contact, simplifies maintenance.

08/

Review Environmental Conditions
Ambient temperature, ventilation, humidity, dust, vibration, altitude, indoor/outdoor — influences performance and service life.

Quality Control

Quality is at the core of every Chifeng Electric High Speed Fuse — from raw material procurement to final inspection, every stage follows standardized QC procedures for stable performance and long-term reliability.

Incoming Material Inspection

Silver strip purity, ceramic body quality, quartz sand purity, copper terminal dimensions, silver plating thickness, insulation, hardware, packaging — only qualified materials proceed.

Production Process Control

Element stamping accuracy, assembly precision, sand filling density, welding quality, torque, dimensional tolerances, marking, traceability — continuous monitoring ensures consistent quality.

Electrical Performance Testing

Resistance measurement, rated current verification, voltage withstand, time-current characteristics, I²t verification, temperature rise, contact resistance, mechanical integrity — comprehensive testing per batch. Type testing and third-party verification available upon request.

Ordering Process

Chifeng Electric follows a standardized order management process — efficient communication, accurate production, on-time delivery.

Submit Inquiry

Application details, electrical specifications, drawings (if available), quantity, technical requirements.

Technical Evaluation

Engineering team reviews requirements — recommends most suitable fuse based on voltage, current, fault level, semiconductor protection needs.

Quotation

Detailed quote — specifications, unit price, MOQ, lead time, packaging, payment terms, shipping options.

Sample Approval

Prototype samples available for lab testing and equipment verification before mass production.

Production

After order confirmation — production begins per approved specs under strict controls.

Quality Inspection

Comprehensive inspection per batch — electrical performance, dimensions, appearance, labeling.

Packaging & Shipment

Export-standard packaging — shipped via customer's preferred logistics channel.

Technical Follow-up

After delivery — engineering and service teams remain available for assistance, support, consultation.

After-Sales Technical Support

Chifeng Electric believes professional technical service is as important as product quality — helping customers maximize reliability and long-term success.

Technical Consultation

Fuse selection, circuit protection design, semiconductor protection, product replacement, installation, troubleshooting, application support — expert guidance.

Product Application Support

Application analysis, installation guidance, operating recommendations, performance optimization, product upgrades, OEM project support — continuous assistance.

Quality Feedback

Any product issues — prompt root cause investigation, corrective actions to minimize downtime, maintain confidence.

Documentation Support

TDS, product catalogs, installation guidelines, test reports, certificates, compliance documents, cross-reference information — available upon request.

Factory Capability

Founded in 1988, Chifeng Electric has evolved to be a competitive fuse brand in China with well-established and growing platforms in circuit protection technologies.

Advanced Manufacturing Equipment

Precision element stamping, automatic assembly lines, ceramic processing, silver welding, precision torque, laser marking, automated inspection, electrical performance labs — High accuracy, consistent quality.

Production Capacity

Standard products, large-volume OEM orders, custom engineering, small-batch prototypes, long-term supply agreements — Flexible planning, stable lead times.

Research & Development

Continuous innovation — Semiconductor protection, element design optimization, low I²t development, thermal performance, material research, reliability enhancement, new product development, customer-specific engineering.

Packaging & Global Shipping

Proper packaging protects electrical components during storage and transport. Chifeng Electric provides professional export solutions — preventing moisture, vibration, damage, and contamination.

Packaging Options

Individual protective packaging, anti-static (where applicable), inner cartons, export cartons, foam protection, moisture-proof packaging, wooden pallets, custom retail packaging, OEM packaging.

Shipping Methods

Sea freight (FCL & LCL), air freight, railway, express courier (DHL, UPS, FedEx, TNT), multimodal — specialists help select most efficient solution by cost, destination, schedule.

Export Documentation

Commercial invoice, packing list, bill of lading, Certificate of Origin, TDS, product catalog, test reports, COC, RoHS declaration, REACH declaration, other required documents.

Certifications

Our product portfolio is designed to comply with applicable international standards, including:

IEC 60269 Series

UL Recognized Product Requirements (selected models)

RoHS Compliance

REACH Compliance

FAQ

Q:What is a High Speed Fuse?

A: A High Speed Fuse, also known as a semiconductor fuse, is a fast-acting overcurrent protection device specifically designed to protect sensitive power semiconductor components such as IGBTs, SCRs, MOSFETs, thyristors, diodes, and rectifiers from short-circuit faults.

Q:How is a High Speed Fuse different from a standard fuse?

A: High Speed Fuses operate much faster than general-purpose fuses and feature significantly lower I²t values, enabling them to interrupt fault currents before semiconductor devices suffer thermal damage.

Q:What does the I²t value mean?

A: I²t represents the amount of thermal energy that passes through the fuse during fault interruption. Lower I²t values indicate better protection for sensitive semiconductor devices by minimizing thermal and mechanical stress.

Q:What voltage and current ratings are available?

A: Our product range covers rated voltages from 250V AC to 1500V AC/DC and rated currents from 1A to 1600A. Additional ratings may be available for specific product series or customized projects.

Q:What operating classes do you offer?

A: We manufacture semiconductor fuses in accordance with IEC utilization categories, including aR, gR, and selected gS series, depending on the application requirements.

Q:Can High Speed Fuses be used in DC systems?

A: Yes. We offer fuse models specifically designed for DC applications such as photovoltaic systems, battery energy storage systems (ESS), DC distribution networks, and electric vehicle charging equipment.

Q:What is your minimum order quantity (MOQ)?

A: MOQ depends on the product series and customization level. Standard models generally have lower minimum order quantities, while customized products may require higher MOQs.

Q:What is your standard production lead time?

A: Standard products are typically delivered within 2–4 weeks, while customized projects may require additional time depending on complexity, tooling requirements, and order quantity.

Q:Which payment methods do you accept?

A: We generally accept T/T (Telegraphic Transfer) and L/C at Sight. Other payment terms may be discussed for long-term strategic partners.

Q:Which countries do you export to?

A: Chifeng Electric supplies customers across Europe, North America, South America, Southeast Asia, the Middle East, Africa, and Oceania, supporting OEM manufacturers, distributors, electrical contractors, and industrial equipment producers.

As one of the most professional high speed fuses manufacturers and suppliers in China since 1988, we have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy advanced high speed fuses at competitive price from our factory.
